Description
Attention! The price includes 9% VAT, it is available for individuals and institutions. If a company invoice is desired, the VAT will be 19% and will be applied to the invoice.

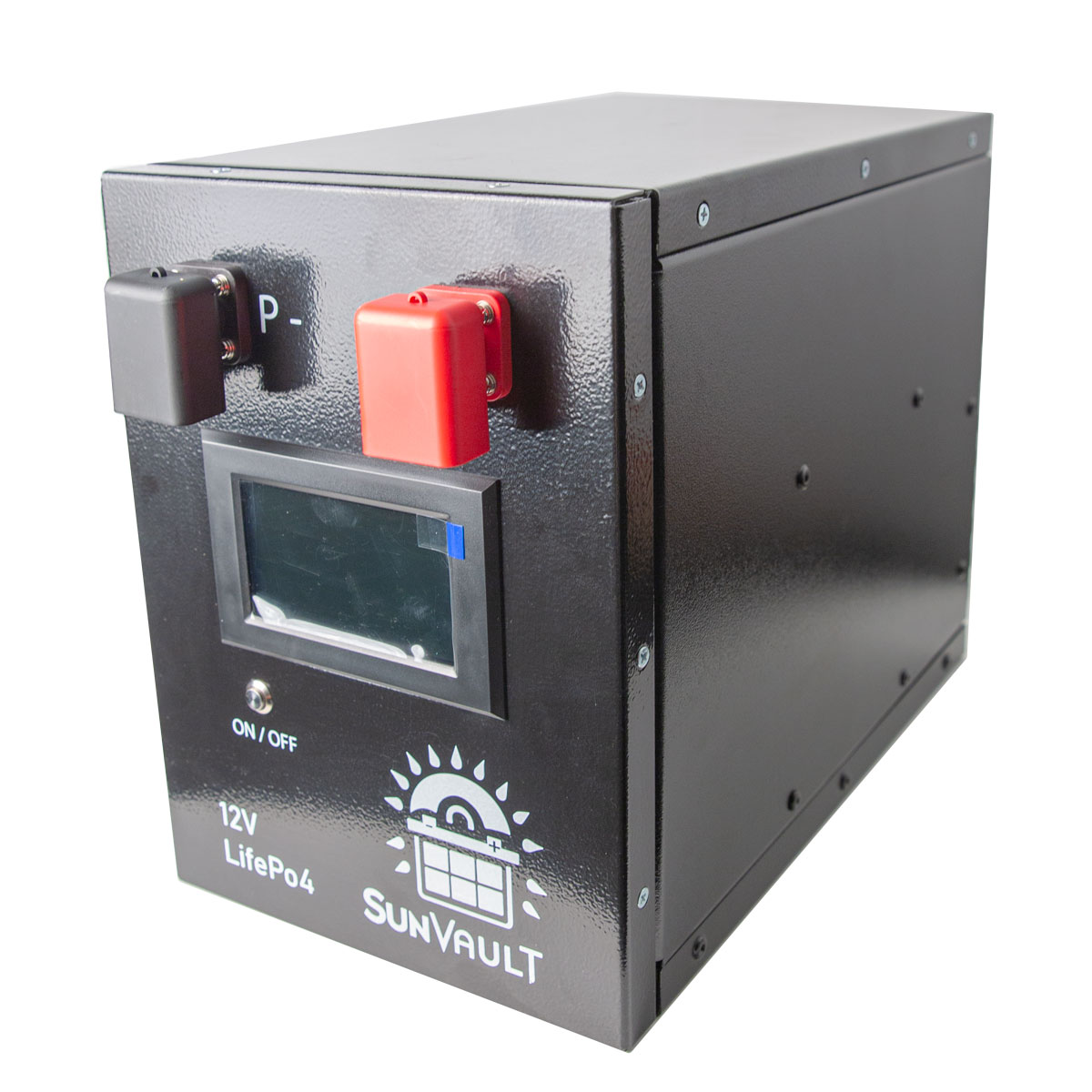

Model: Sunvault 4.02Kwh, 12V 314Ah, 200A Smart Battery
- Nominal voltage: 12.8V
- Nominal capacity: 314 Ah
- Energy: 4.02 kWh
- Cell configuration: 4S 1P
- Life cycles: >
- Weight: 32 kg
- Dimensions: 395mm x 230mm x 310mm
- Operating voltage range: 10.4V to 14.4V
- Charging voltage: 14.4V
- Discharge cut-off voltage: 10.4V
- Operating temperature range: 2°C to 55°C
- Storage temperature range: 25°C
BMS specifications
Model: B2A8S20P JKBMS 200A, 2A Active Balancing
- Continuous discharge current: 200A
- Maximum discharge current: 350A for 1 min
- Charging current: 150A
- Balancing method: 2A active balancing
- Communication interfaces: Bluetooth
- Protection functions: Overcharge protection, overdischarge protection, overcurrent protection, short circuit protection, temperature protection with the use of 2 temperature probes
- Monitoring and reporting: Voltage, current, temperature, charging status via a 4.3-inch screen
Additional Information
- Producer:
- Cells: EVE
- BMS: Jikong
- Warranty: 10 years
- Certifications:
- CE BMS Certificate Number: ZHT-230316005C
- Cell certification: SiCt: XK2303013084C
